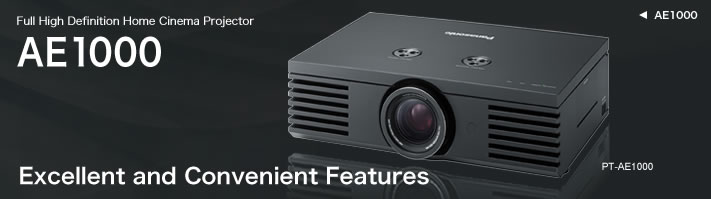

Panasonic（松下） PT-AE1000 投影机(停产)
http://www.hifi.com.cn/ 来源:索兰影音 关键词：松下 PT-AE1000 投影机
| PT-AE1000 | ||
| Power supply | 100–240 V AC, 50/60 Hz | |
| Power consumption | 240 W (Approx. 0.08 W in standby mode with fan stopped) | |
| LCD panel *1 |
Panel size | 0.74" diagonally |
| Aspect ratio | 16:9 aspect ratio | |
| Display method | Transparent LCD panel (x 3, R/G/B) | |
| Drive method | Active matrix | |
| Pixels | 2,073,600 (1,920 x 1,080) x 3, total of 6,220,800 pixels | |
| Lens | Powered zoom (2x)/powered focus, F 1.9-3.2, f 22.4 mm-44.8 mm | |
| Lamp *2 | 165 W UHM™ lamp | |
| Brightness | 1,100 lumens *3 | |
| Contrast | 11,000:1 *3 (full on/full off) | |
| Center-to-corner uniformity ratio | 85% | |
| Colors | Full color (1,070,000,000 colors) | |
| Projection size | 1,016–5,080 mm (40-200 inches) diagonally, 16:9 aspect ratio | |
| Throw distance | 1.2 m -12.0 m (3'11"- 40'8") | |
| Screen aspect ratio | 16:9 (4:3 compatible) | |
| Resolution | RGB: 1,920 x 1,080 pixels | |
| Scanning frequency for RGB | Horizontal: 30-70 kHz, Vertical: 50-87 Hz | |
| YPBPR signal compatibility | 525i (480i), 525p (480p), 625i (576i), 625p (576p), 750 (720)/50p, 750 (720)/60p, 1,125 (1,080)/24p, 1,125 (1,080)/50i, 1,125 (1,080)/50p, 1,125 (1,080)/60i, 1,125 (1,080)/60p |
|
| Color system | PAL, PAL-M, PAL-N, PAL 60, SECAM, NTSC, NTSC 4.43 | |
| Optical axis shift *4 | Horizontal ±40% and vertical ±100% | |
| Keystone correction range | Vertical: approx. ±30° | |
| Installation | Ceiling/desk, front/rear (menu selection) | |
| OSD languages | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Swedish, Danish, Norwegian, Polish, Czech, Hungarian, Portuguese, Thai |
|
| Terminals | S-VIDEO IN | Mini DIN 4-pin x 1 |
| VIDEO IN | RCA pin x 1 | |
| PC(RGB) IN | D-sub HD 15-pin (female) x 1 | |
| COMPONENT IN | PT-AE1000U: RCA pin (Y, PB/CB, PR/CR) x2 PT-AE1000E: RCA pin (Y, PB/CB, PR/CR) x1 |
|
| SCART IN | 21-pin x 1 for PT-AE1000E only | |
| HDMI IN | 19-pin HDMI connector x 2 | |
| SERIAL | D-sub 9-pin x 1 (RS-232C based) | |
| Power cord length | 3m (9'10") | |
| Cabinet material | ABS/PC | |
| Dimensions *5 (W x H x D) | 460 x 130 x 300 mm (18-1/8" x 5-1/8" x 11-25/32") | |
| Weight | 7.2 kg (15.9 lbs.) | |
| Operating environment | Temperature: 0° - 40°C (32°-104°F) Humidity: 20% - 80% (no condensation) |
|
| Remotecontrol unit | Power supply | 3 V DC (UM-3 (AA) battery x 2) |
| Operation range | Approx. 7 m (23') when operated from directly in front of the signal receptor | |
| Dimensions (W x H x D) |
52 x 200 x 28.5 mm (2-1/16" x 7-27/32" x 1-1/8") |
|
| Weight | 170 g (6 oz.) (including batteries) | |
| Supplied accessories | Power cord, Wireless remote control unit, Batteries for remote control (UM-3 x 2) | |
| Optional accessories | ET-LAE1000 | Replacement lamp unit |
| ET-PKE1000S | Ceiling mount bracket | |
| ET-PKX100 | Ceiling mount bracket for high ceilings | |
| ET-PCE1000 | Cable cover | |
